Hybrid Solar inverter with 100V-500V PV Input and 120Vac single phase/240Vac split phase

Shenzhen JinFuYuan Power. Co., Ltd
Contact Now

Hybrid Solar inverter with 100V-500V PV Input and 120Vac single phase/240Vac split phase

Brand Name : JFY TECH

Model Number : iXCEED 5.5K48-D120V

Certification : CE

Place of Origin : CHINA

MOQ : 20

Price : USD

Payment Terms : T/T

Supply Ability : 600

Delivery Time : 5-8 work days

Packaging Details : carton box

PV Input : 100-500V

AC Output : 120Vac single phase/240Vac split phase

Rated Output Power : 5500W

Battery Type : Lead acid or lithium batteries

Battery Voltage Range : 42~58V

Communication with Cloud : WiFi/4G

Contact Now

Hybrid Solar inverter with 100V-500V PV Input and 120Vac single phase/240Vac split phase

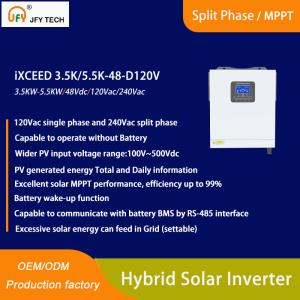

iXCEED 3.5K/5.5K -D120V
Hybrid Solar inverter with 100V-500V PV Input and 120Vac single phase/240Vac split phase
Features
> 120Vac single phase and 240Vac split phase
> Capable to operate without Battery
> Wider PV input voltage range:100V~500Vdc
> Excellent solar MPPT performance, efficiency up to 99%
> PV generated energy Total and Daily information
> Battery wake-up function
> Capable to communicate with battery BMS by RS-485 interface
> Excess solar energy can be powered to Grid (settable)
MODEL iXCEED 3.5K48-D120V iXCEED 5.5K48-D120V
PV Array
Max.PV Array Power 4200W 6600W
Max.PV Array Open-Circuit Voltage 500VDC
Start-up Voltage 100VDC
MPPT Operating Voltage Range 120-450VDC
Nominal Input Voltage 360VDC
Max. Input Current MPPT 18A 30A
Max. Short Circuit Current MPPT 20A 33A
Battery
Battery Type Li-ion / lead-acid
Nominal Battery Voltage 48V
Battery Voltage Range 42-58V
Max. AC Charging Current 30A 50A
Max. PV Charging Current 60A 100A
Max. Continuous Discharging Current 80A 120A
AC Input
Nominal Voltage 120Vac(single phase)/240Vac(split phase)
Voltage Range 90-140Vac/180-280Vac
Frequency 50/60Hz (Auto following)
Max. Input Current 22A 36A
AC Output
Nominal Voltage 120Vac±5%/240Vac±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 3500VA/3500W 5500VA/5500W
PeakOutput Power 5100VA 8000VA
Nominal Output Fregency 50/60Hz
Transfer Time <10ms
Max. PV to AC Efficiency 96.5% 96.5%
Max. Battery to AC Efficiency 93.0% 93.0%
Protection
PV Insulation Resistance Detection Yes
Load Over current Protection Yes
General Data
Operating Temperature Range -10 -- +50℃
Relative Humidity 0∽95%
Max. Operating Altitude <4000m
Cooling Method Intelligent Fan cooling
Display LED+LCD
Communication with BMS RS485
Communication with Cloud WiFi/4G
Degree of Protection IP20
Weight(kg) 9 10.5
Dimension(W*H*Dmm) 373*300*105
Mounting Method Wall Mounted
